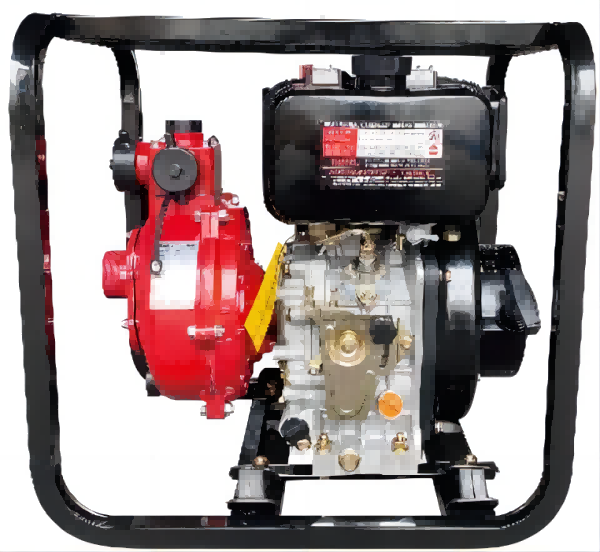

Model | ROP-2DH1 | ROP-2DH2 | ROP-3DH |
Engine | R0178F(E) | R0178F(E) | R0186FA(E) |
Inlet size(mm) | 50 | 50 | 80 |
Outlet size (mm) | 1*50+2*40 | 1*50+2*40 | 1*65+2*40 |
Max.suction head(m) | 8 | 8 | 8 |
Max.Capacity(m3/h) | 30 | 20 | 40 |
Max.lifthead (m) | 65 | 80 | 80 |
Impeller(mm) | 168*1 | 150*2 | 190*1 |
N.W.(kg) | 52 | 53 | 69 |
Packing Size(mm) | 580*470*570 | 580*470*52 | 655*480*615 |
