Silent Diesel Generator Optional：
□Three Phase □Hour Counter □Remote Control
□ATS □Digital Panel
Battery Optional：
□12v~22Ah □12v~30Ah □12v~36Ah

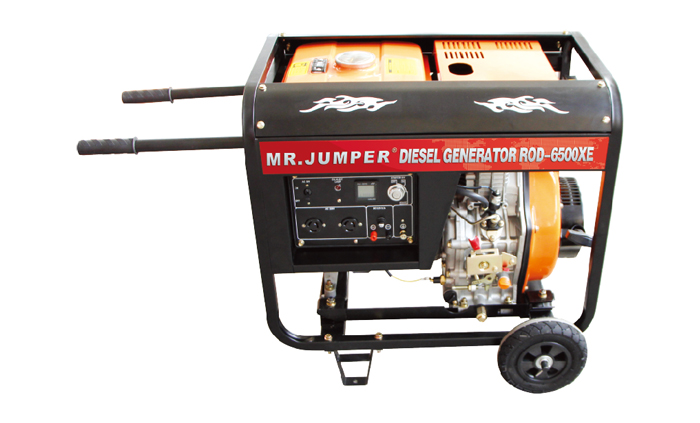

DIESEL GENERATOR-OPEN FRAME TYPE
| Model | ROD-6500X(E) |
| Rated frequency(Hz) | 50/60 |
| Rated Voltage(V) | 220,230,240,110/220,115/230,120/240,230/380 |
| Rated output power(KVA) | 4.5 5.0 |
| Max output power(KVA) | 5.62 6.25 |
| Rated rotation speed(rpm) | 3000 3600 |
| Power factor cos | 1/0.8 |
| Phase number | Single Phase |
| Excitation transistorized | AVR Self-excitation brush |
| Structure type | Open Frame |
| Fuel consumption(g/kw.h) | 340 |
| Fuel tank capacity(L) | 12.5 |
| Continuous runing time(hr) | 7 |
| Noise level | 75-79 |
| Starting system | X:recoil starter;XE:electric starter |
| Fuel type | 0#(summer),-10#(winter),-35#(chill cold)diesel oil |
| Lube | SAE10W30(Above CD Grade) |
| Engine model | RO186FA(E) |
| Engine type | 1-Cylinder,4-stroke,air clooled,vertical,diesel engine |
| Borexstroke | 86*72 |
| Displacement | 418 |
| Compression ratio | 20:01 |
| Rated power(kw)/(rpm) | 6/3000 6.6/3600 |
| Net weight(kg) | X:96 XE:100 |
| Overall dimension | 720*485*630 |
| Optional standard | ATS REMOTE CONTROL THREE PHASE WHEEL AND HANDLE |
