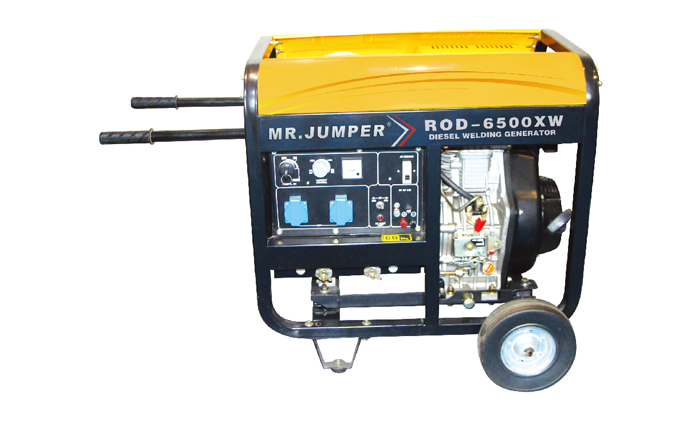

DIESEL WELDER & GENERATOR-OPEN FRAME TYPE
| Model | ROD-6500XW |
| Rated frequency(Hz) | 50 60 |
| Rated Voltage(V) | 220/230/240 |
| Rated Current(A) | 8.7 9.2 |
| Rated output power(KVA) | 2 2.2 |
| Welding voltage without load(V) | 55-65 |
| Welding Rated Current(A) | 180 |
| Work voltage(V) | 26 |
| Current regulation range(A) | 50-180 |
| Welding load continuous ration | 50% |
| Power factor | 1 |
| Phase number | Single phase |
| Noise level | 74-79 |
| Net weight | 112 |
| Overall dimension | 750*515*640 |
| Structure model | Open frame |
| Engine model | RO186FAE |
| Starting system | electric starting |
| Fuel type | 0#(summer),-10#(winter)diesel oil |
| Lube | CD or better than CD |
| Low oil pressure alarm system | With |
