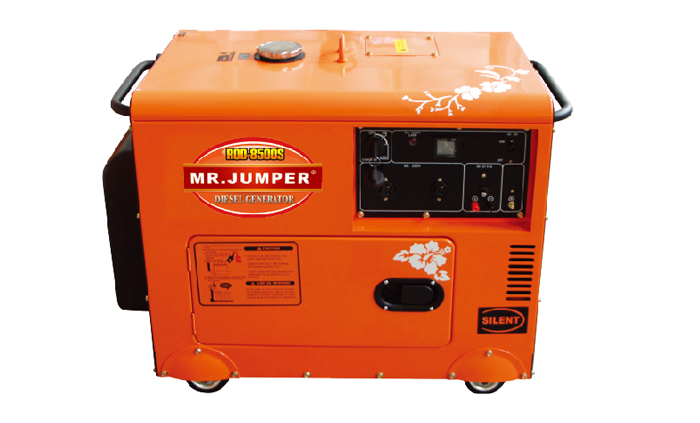

ROD-8500S
    • ROD-8500S
Product Details

Silent Diesel Generator Optional:

□Three Phase   □Hour Counter   □Remote Control

□ATS   □Digital Panel   □Big Fuel  Tank   □Pre-heater

Battery Optional:

□12v~22Ah    □12v~30Ah   □12v~36Ah


DIESEL GENERATOR-SILENT TYPE

Model ROD-8500S
Rated frequency(Hz)  50   60
Rated Voltage(V)  220,230,240,220/110,230/115,240/120,220/380,230/400,240/415
Rated output power(KVA) 6.5(8.1)   7.0(8.75)
Ration rotation speed(rpm) 3000   3600
DC output  12V 8.3A
Power factor cos c  1/0.8
Phase number   Single phase
Excitation Mode AVR self-excitation brush
Noise level 70-74
Structure model  low noise
Engine model  RO192FE
Engine type  1-Cylinder,4-stroke,air clooled,direct injection,diesel engine
Displacement  499
Compression ratio 19:01
Rated power(kw/rpm) 8.2(11.3)/3600
Starting system electric starting
Rotation direction clockwise
Fuel type  0#(summer),-10#(winter)diesel oil
Low oil pressure alarm system with
Overall dimension  960*550*700
Net weight(kg)  170
Optional standard ATS  REMOTE CONTROL     THREE PHASE  DOUBLE VOTAGE   DIGITAL PANEL
FLIP COVER
