ROV-28/ROV-32/ROV-38
    • ROV-28/ROV-32/ROV-38
Product Details

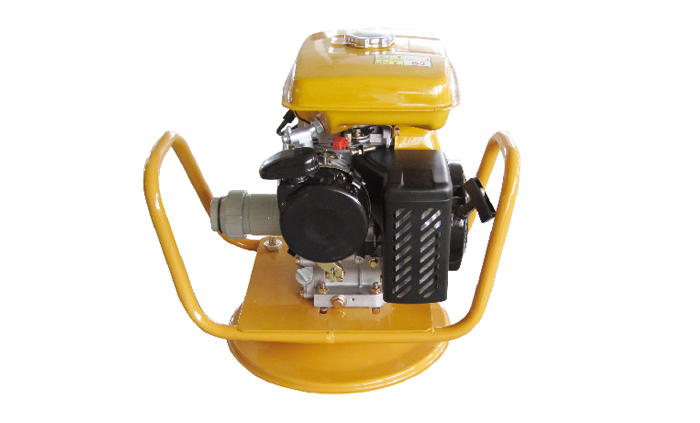

CONCRETE VIBRATOR

Concrete VibratorROV-28ROV-32ROV-38
Vibrator Head        (mm)28*47032*47038*470
Vibrator per min    (V.P.M)9800-120009800-120009800-12000
Shaft roate speed   (RPM)300030003000
Amplitude             (m/m)0.80.91.2
Flexible shaft         (m)666
Weight                   (kg)141618
Packing size:L*W*H (mm)515*380*515(for body)       870*660*80(for hose)
