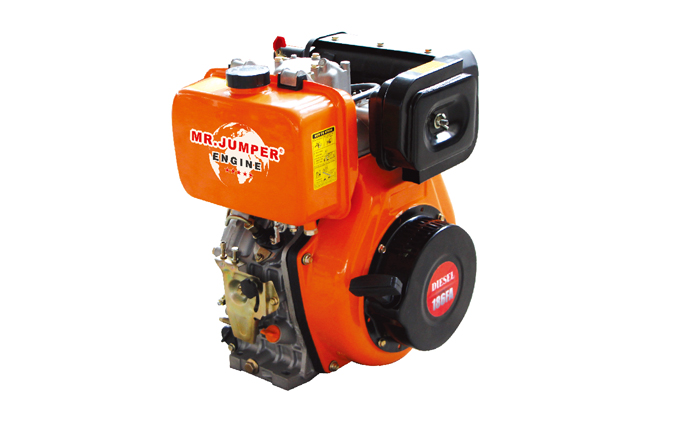

DIESEL ENGINE

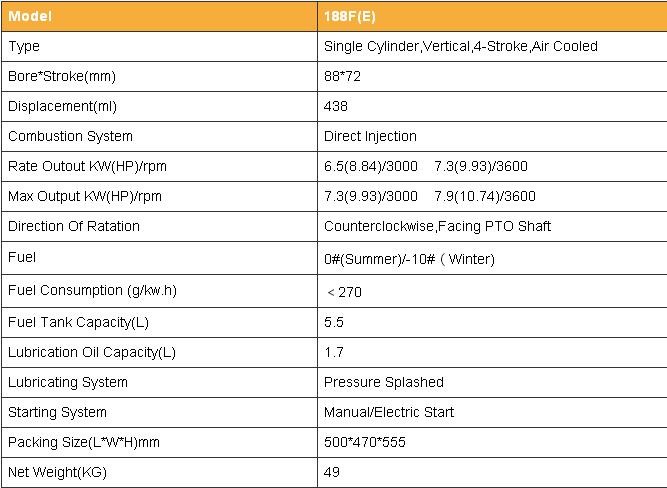

| Model | 188F(E) |
| Type | Single Cylinder,Vertical,4-Stroke,Air Cooled |
| Bore*Stroke(mm) | 88*72 |
| Displacement(ml) | 438 |
| Combustion System | Direct Injection |
| Rate Outout KW(HP)/rpm | 6.5(8.84)/3000 7.3(9.93)/3600 |
| Max Output KW(HP)/rpm | 7.3(9.93)/3000 7.9(10.74)/3600 |
| Direction Of Ratation | Counterclockwise,Facing PTO Shaft |
| Fuel | 0#(Summer)/-10#（Winter) |
| Fuel Consumption (g/kw.h) | ＜270 |
| Fuel Tank Capacity(L) | 5.5 |
| Lubrication Oil Capacity(L) | 1.7 |
| Lubricating System | Pressure Splashed |
| Starting System | Manual/Electric Start |
| Packing Size(L*W*H)mm | 500*470*555 |
| Net Weight(KG) | 49 |
